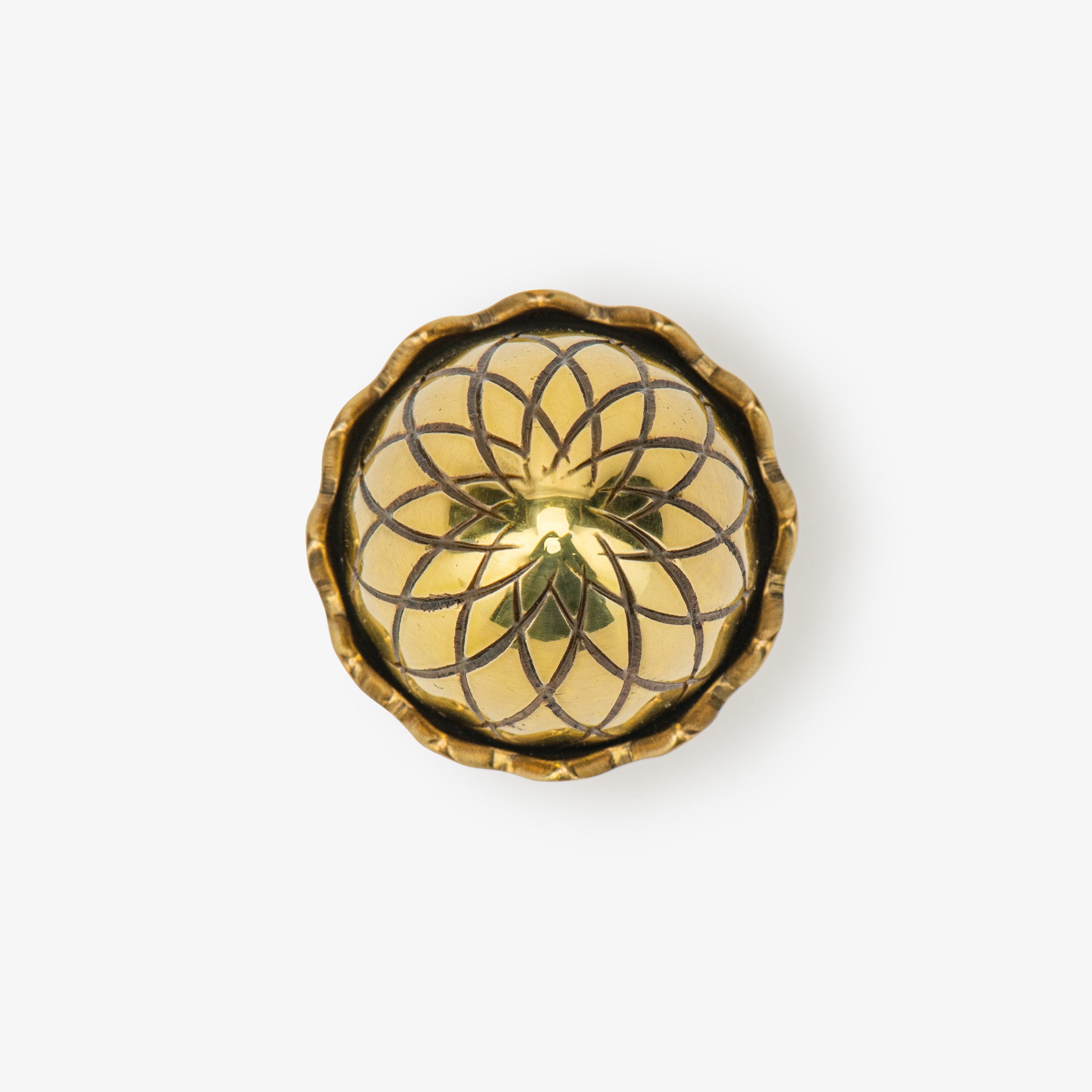

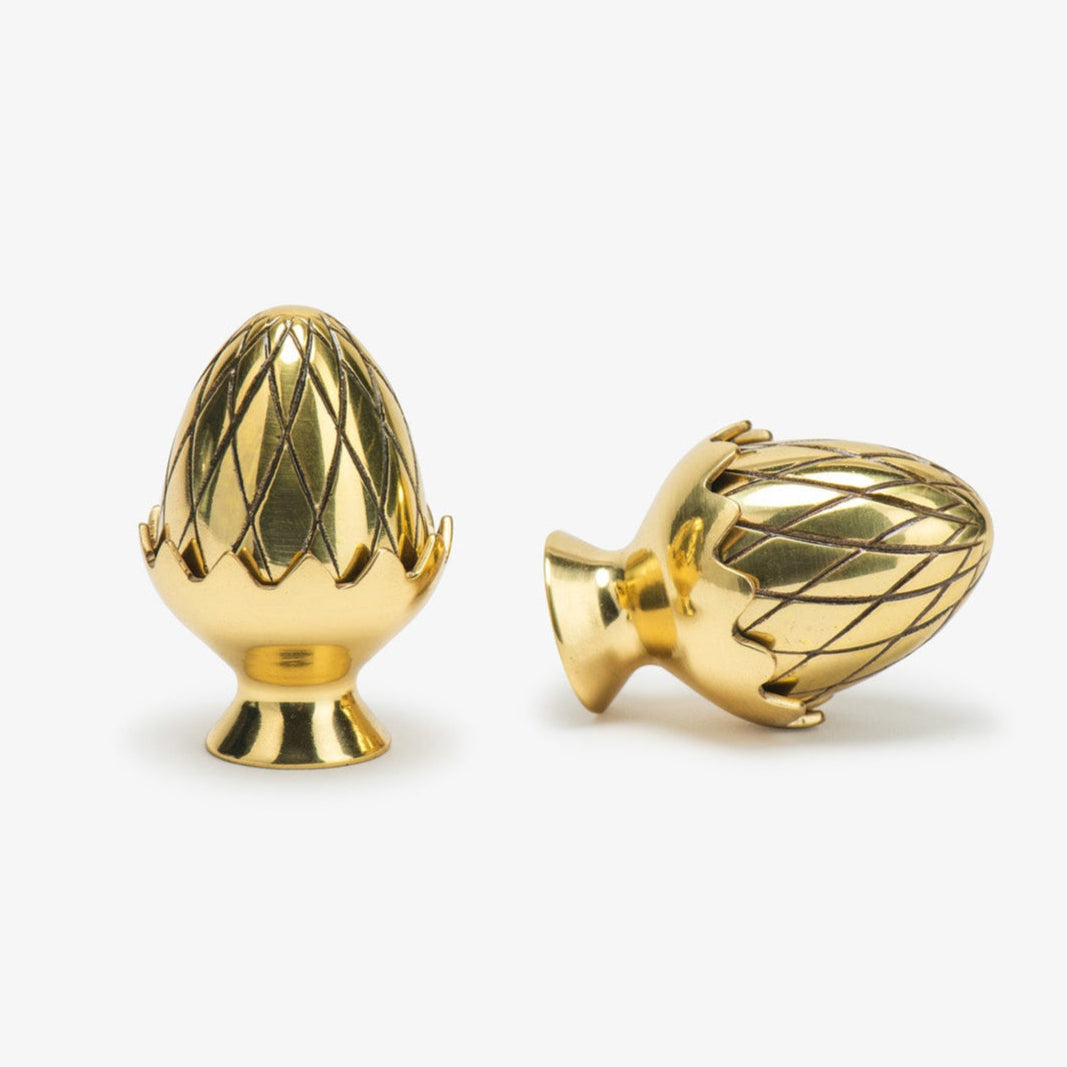

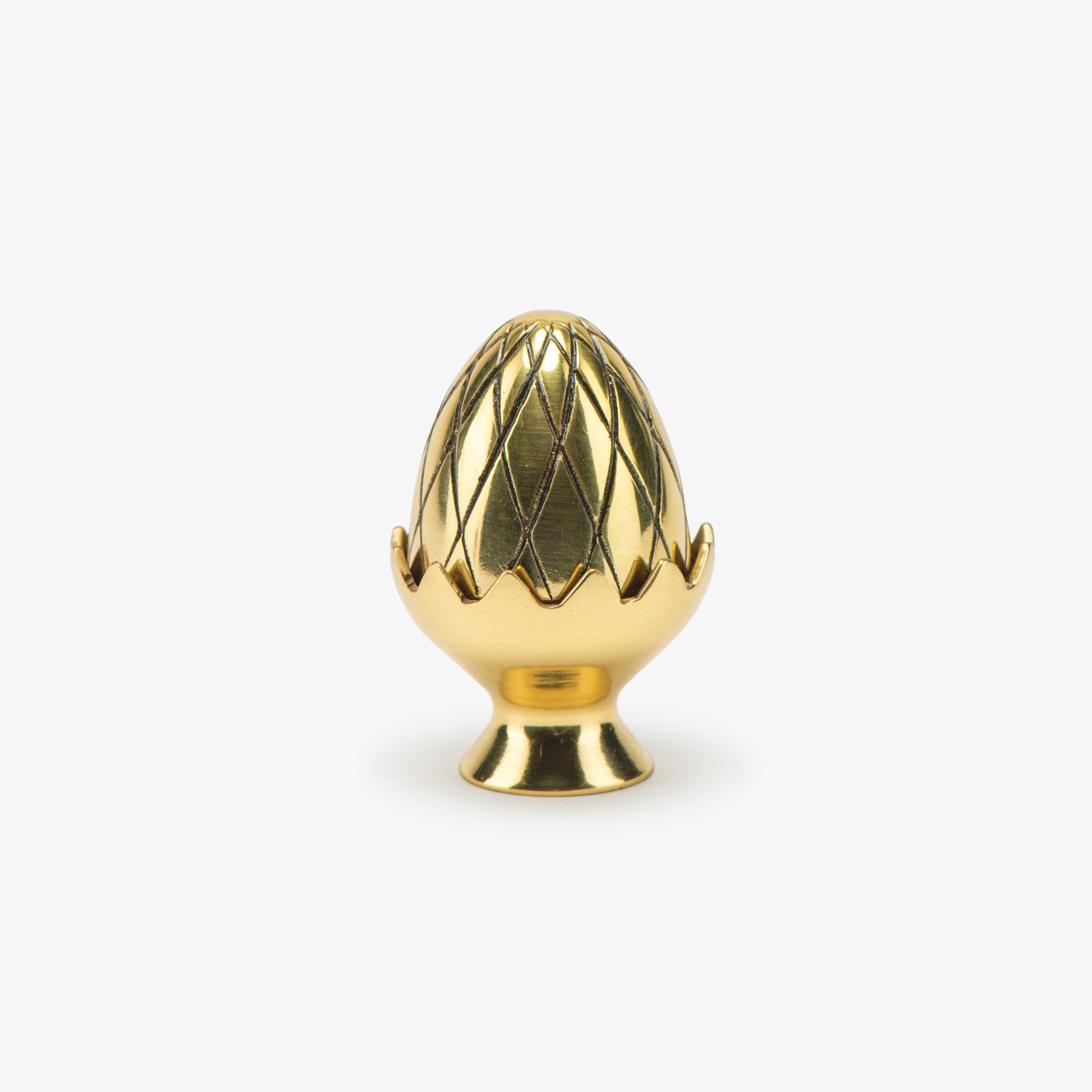

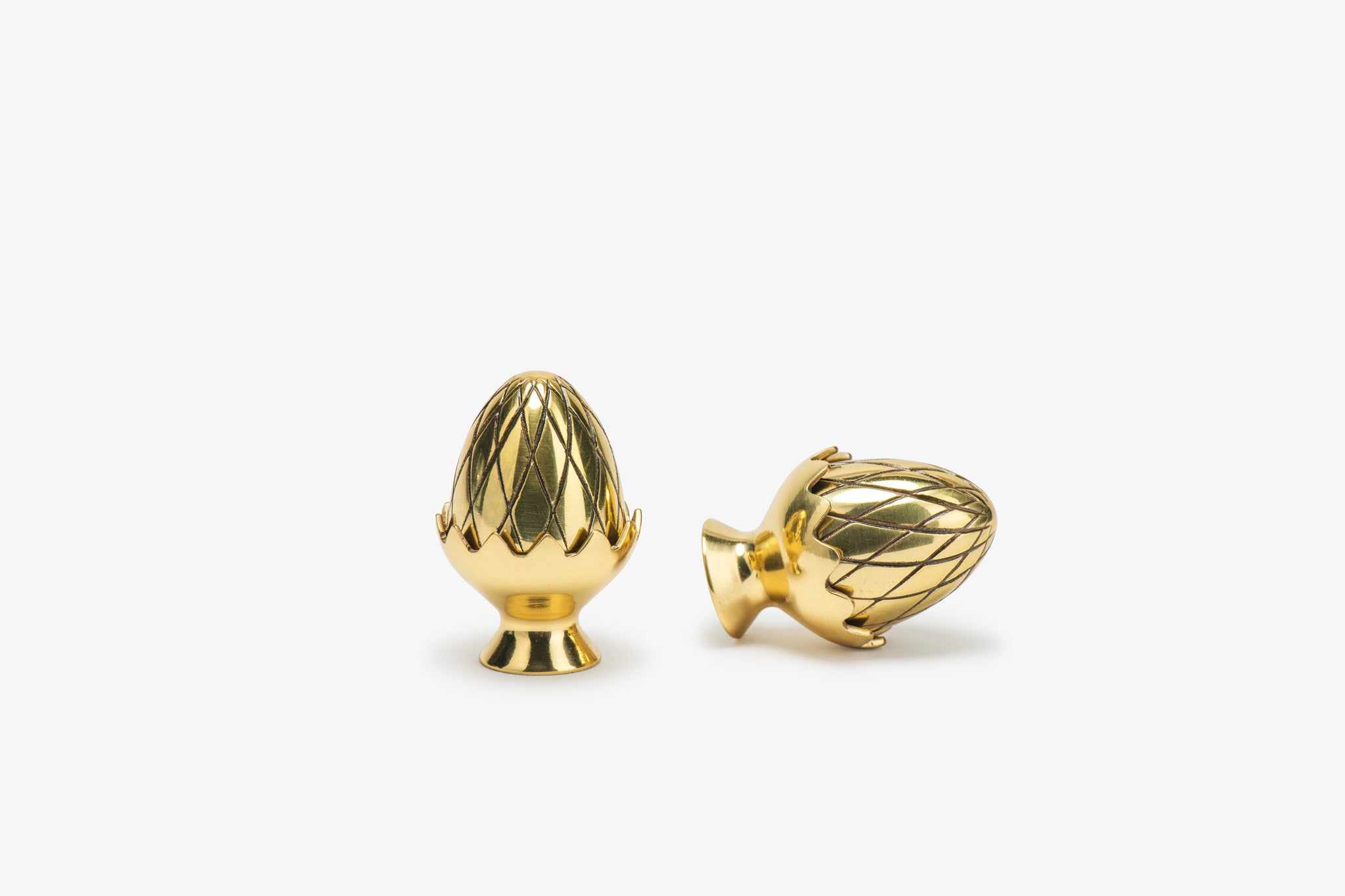

Pierre 1.36" Knob - Unlacquered Brass
Dimensions
1.25" L x 1.25" W x 1.8" Projection
Member of the Trade? Log in Here
Product Details
Shipping
Shop the Knobs Collection
Installation
Installing your horizontal backplate knob set is simple with the included template. Follow these four steps to prepare the door, install the latch and strike plate, and securely attach the interior and exterior trims.
Position the Template
Place the installation template over the door, centering it on the existing bore hole or aligning it with the desired hardware position. Tape the template securely in place.
Drill Pilot Holes
Using a 1/8" drill bit, drill four pilot holes at the points marked “A” on the template. Use the strike plate outline to mark its position on the door jamb, aligning it with the centerline.
Install the Latch and Strike Plate
Insert the latch assembly into the edge of the door. Position the face plate over the latch and secure it with the provided screws. Install the dust box and strike plate on the door jamb using the marked locations.
Attach the Backplates and Knob
Insert the spindle through the latch assembly. Position the exterior and interior horizontal backplates on opposite sides of the door, align the knobs with the spindle, and secure both trims using the provided screws.
